Illuminated Double Head Pushbutton Green / Red 240V

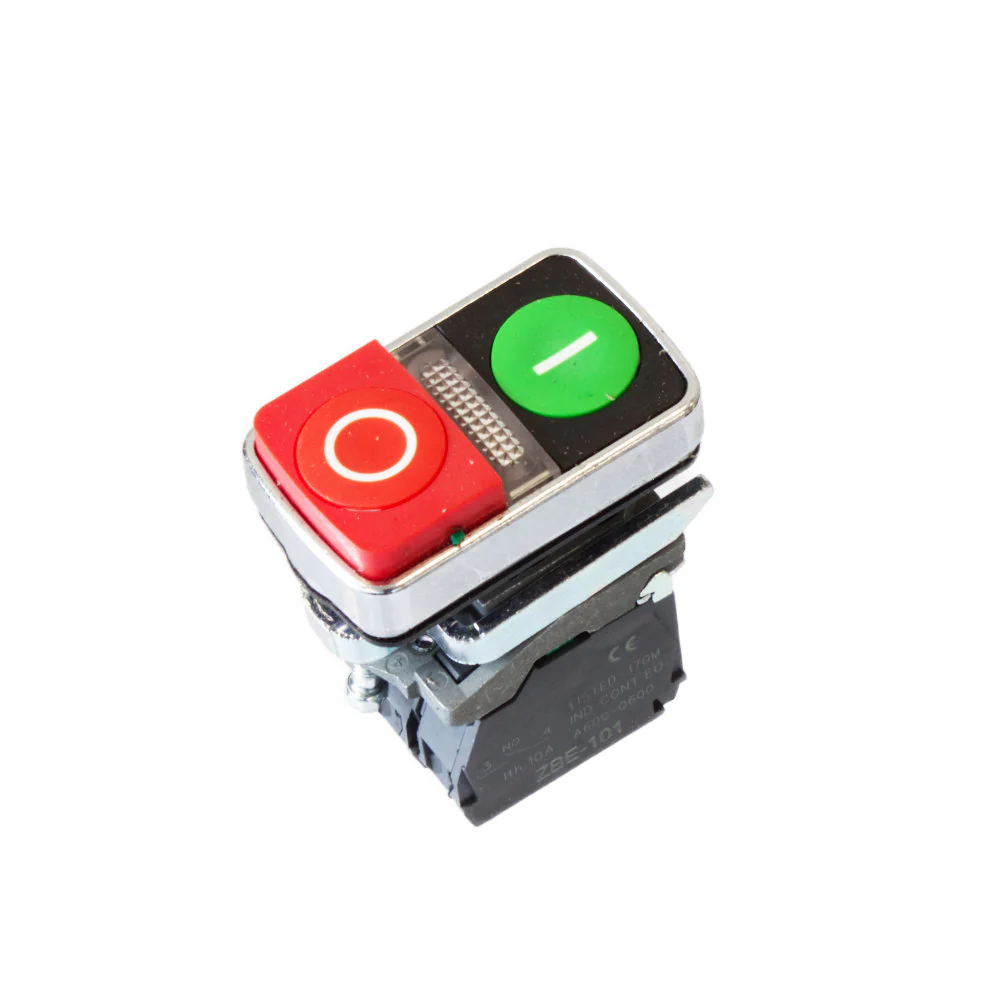

Product image 1

Illuminated Double Head Pushbutton Green / Red 240V

Double head push-button green/red, latching, 22mm, Illuminated, 1 Flush + 1 Projecting, 230v, metal type

Features

Illuminated double-headed push-button
Latching
Green ''I'' - red ''O''
230V AC/LED
1 N/O + 1 N/C

Button Profile:

  • Consists of 1 flush button and 1 projecting button.
  • The flush button is marked with a green “I”, while the projecting button is marked with a red “O”.

Technical Details:

  • Bezel Material: Chromium-plated metal.
  • Mounting Diameter: Approximately 22 mm (0.87 inches)1.
  • Contact Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC).
  • Operation Type: Spring return.
  • Illuminated: Yes.
  • Legend: The buttons are labelled “1” and “0”.
  • Material: Made of metal.
  • Weight: Approximately 0.125 kg.
  • Guarantee: Covered by an 18-month guarantee.
  • Frequency: Suitable for 50/60 Hz operation.
  • Packaging: Sold individually.

Standards Compliance:

  • EN IEC 60947
  • JIS C 4520
  • UL 508
  • CSA C22.2 No 14

UNSPSC Code: 39122216.

This button profile is commonly used in industrial control applications, and its chromium-plated finish ensures durability and resistance to wear. If you have any further questions or need additional information, feel free to ask!
