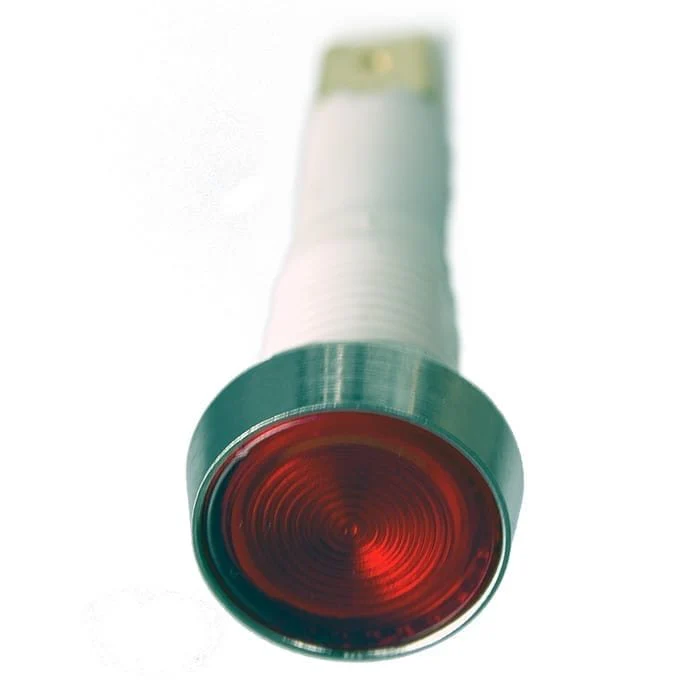

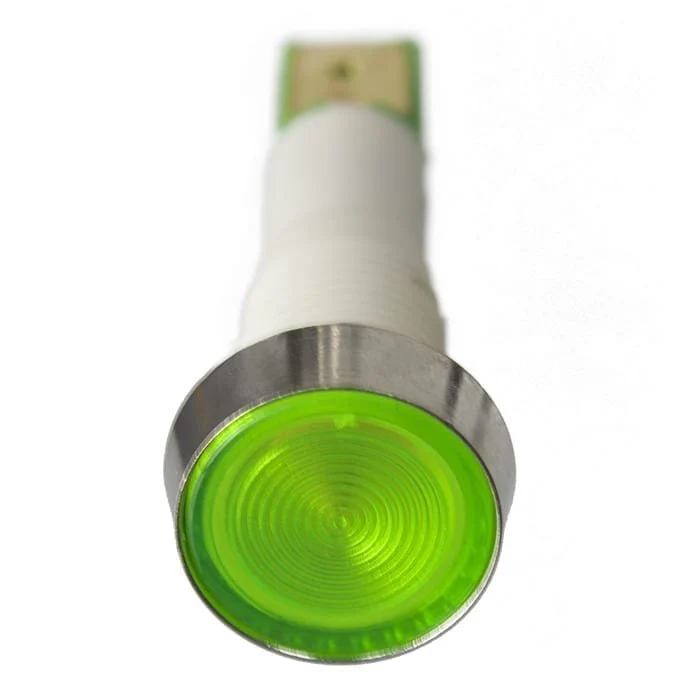

The 10NJ-5 panel indicator lamp is a compact, high-quality LED indicator designed for clear visual signalling in industrial control panels, electrical equipment, and machinery interfaces. Built with durable PA66 engineering plastics and a nickel-plated brass lamp shade, it delivers long service life, stable illumination, and reliable electrical performance.
Ideal for OEM manufacturers, repair applications, appliance control boards, and general industrial signalling.
| Indicator Lamp Specification – 10NJ-5 | |
|---|---|
| Tail Configuration | Terminal |
| Terminal Specifications | 6.3 mm wide, 0.8 mm thickness, 10 mm length |
| Dielectric Intensity | 1500 VAC |
| Ambient Temperature | -15°C to +80°C |
| Panel Thickness | 1–12 mm |
| Nut Torque | Max 44 N·m |
| Protection Level | IP50 |
| Mounting Hole | 10 mm |
| Unit Weight | 5.2 g |
| Unit Accessories | Nut Ă— 1 piece |
| Materials | |
| Lamp Shade | PA66 & Nickel-plated Brass |
| Enclosure | Nylon PA66 |
| Base | Nylon PA66 |
| LED Parameters | |
| LED Type | 5 mm non-polarity LED |
| Rated Voltage available | 2V / 3V / 6V / 12V / 24V / 48V / 110V / 220V / 380V |
| Rated Current | 20 mA |
| LED Colour Options | Red, Green, Blue, Yellow, White |
| LED Life | 70,000 hours |
| Optical & Electrical Characteristics (at IF = 20 mA) | |
| Luminous Intensity | Red: 1000–1500 mcd Green: 8000–10000 mcd Yellow: 1000–1500 mcd Blue: 2000–3000 mcd |
| Dominant Wavelength | Red: 620–625 nm Green: 520–525 nm Yellow: 588–592 nm Blue: 460–465 nm |
| 50% Power Viewing Angle | Red: 35° Green: 60° Yellow: 35° Blue: 35° |
| Forward Voltage | Red: 1.8–2.2 V Green: 3.0–3.2 V Yellow: 2.0–2.2 V Blue: 3.0–3.2 V |
| Reverse Current (at VR = 5 V) | Red / Green / Yellow / Blue: Max 3 µA |
| Lens Colour | Same as LED colour |
Original: $2.63
-65%$2.63
$0.92Product Information
