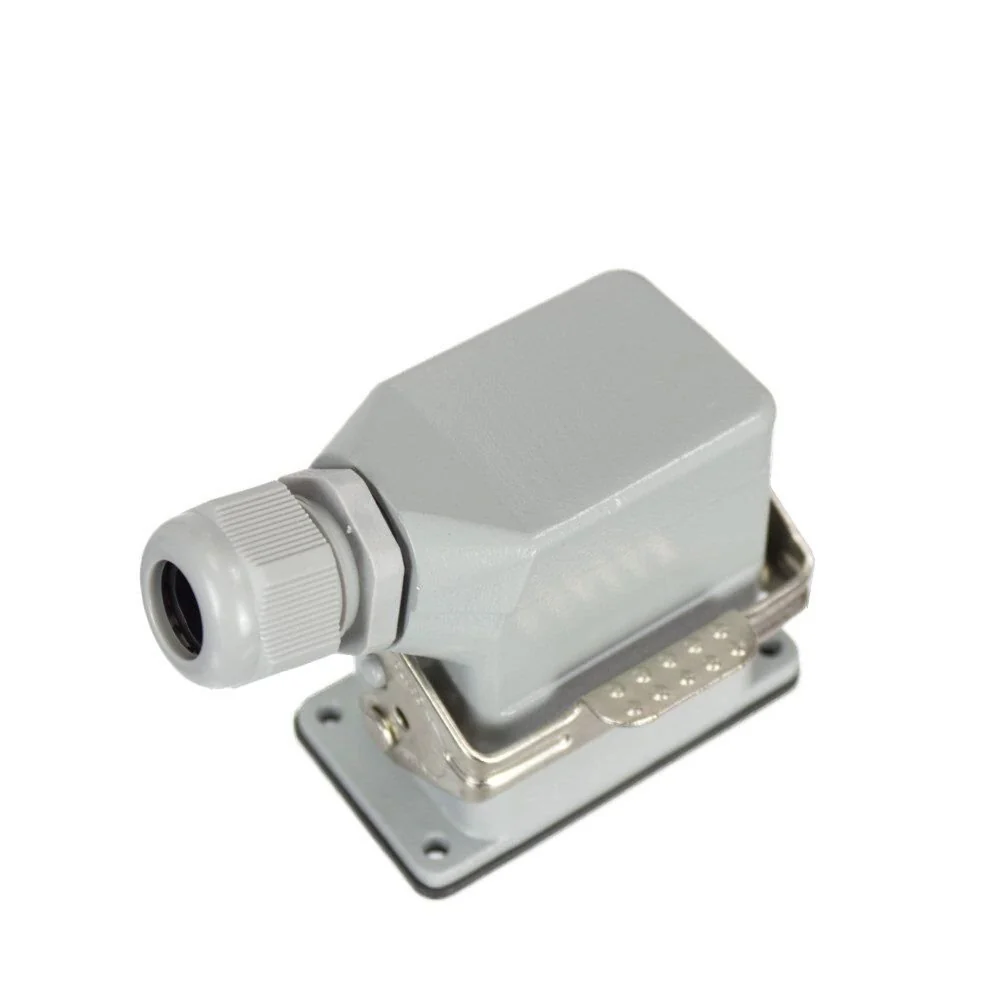

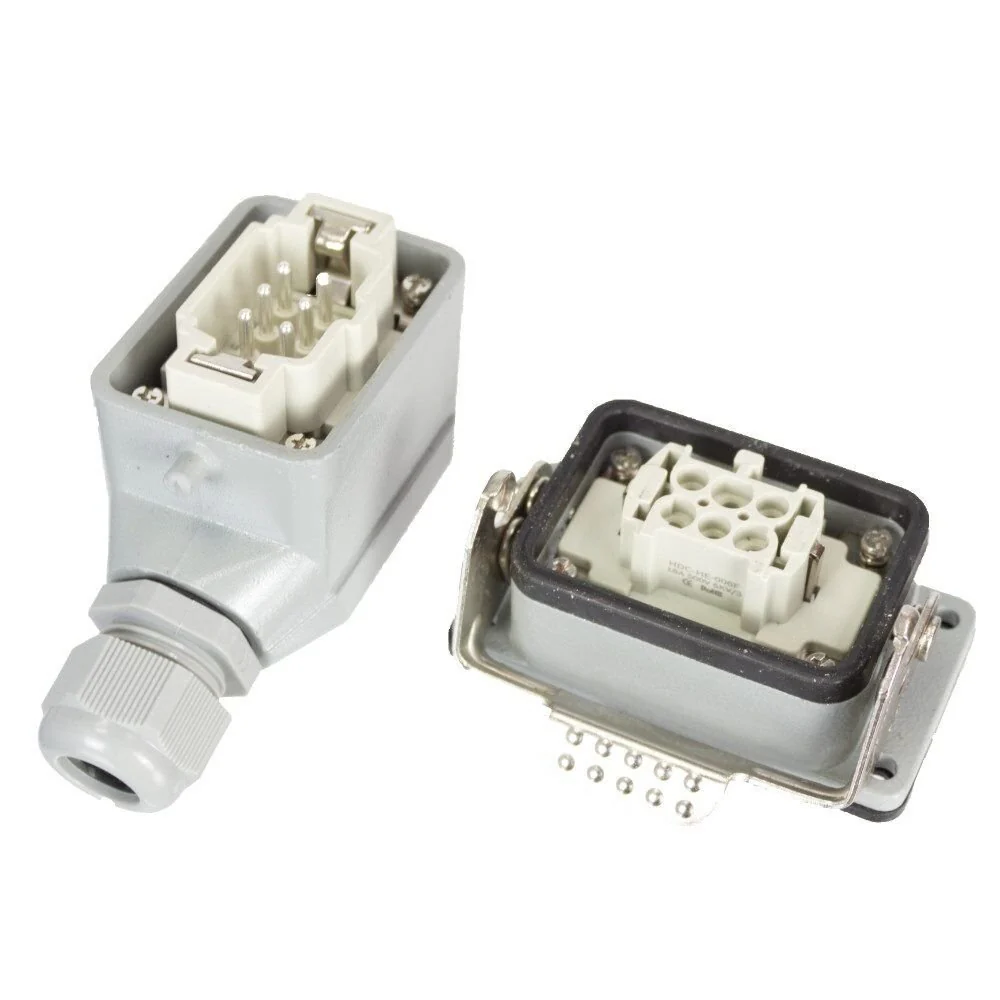

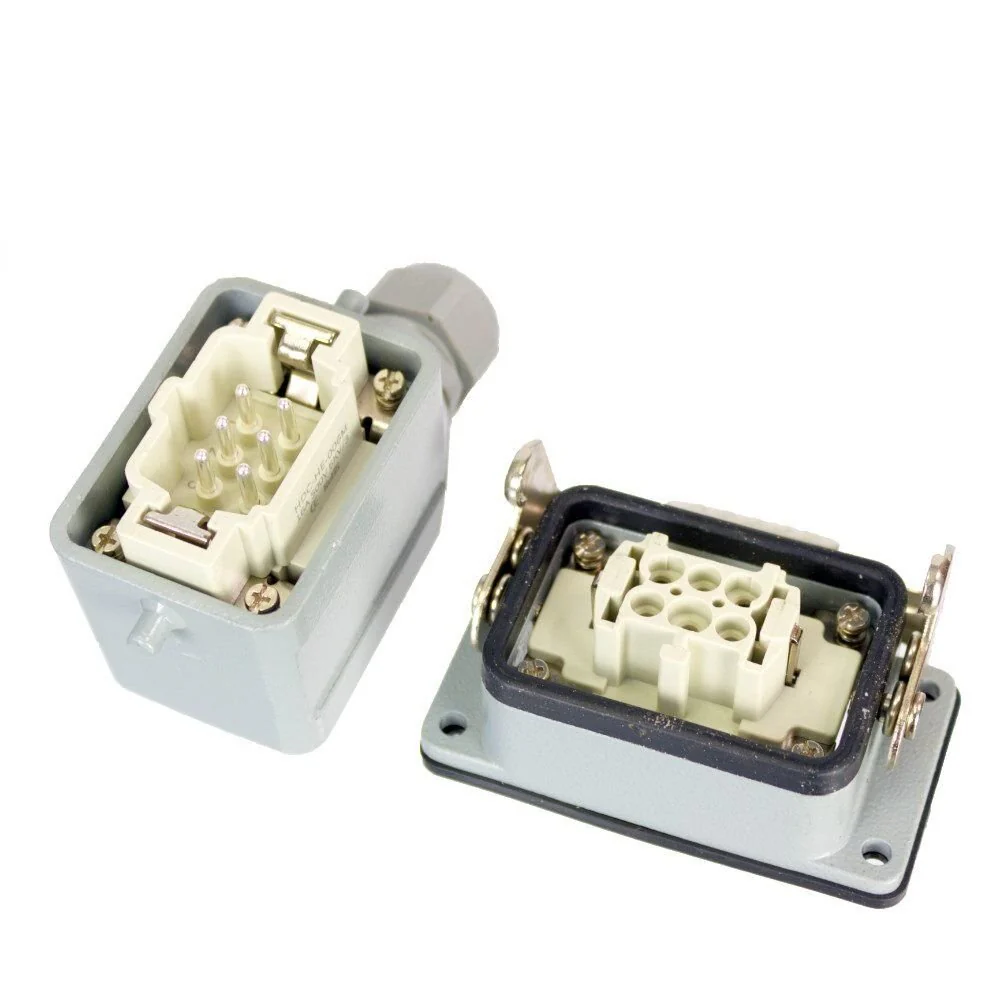

Harting Type Aviation Connector Han 6 Pin 16A 500V
HARTING Heavy Duty Power Connector, double lock, Han, 5 + PE Way Male & female 16A, 500v, Connector
Harting connectors are robust and strong and are the most reliable way of connecting an electrical power supply. Being made from alloy they give protection against crushing. They are fitted with a quick-release latch that ensures the correct amount of pressure and protects the connection from becoming lose. Fitted with a seal ring protect against dust and a level of moisture to ensure long trouble-free working life.
Â
Specification
Type HARTING
Connector type HAN
Connector content male + female
Kit contents plug +plug (male/female)
Number of pins 6
Type of pin configuration 5+PE
Case size 80 x 80 x43mm
Mechanical mounting for cable
Connector variant with cable gland
Spatial orientation angled
Electrical mounting snap-on (Quick Lock)
Gland thread PG16
Gasket material NBR
Cable size 10-14mm
Parameters: Plug Body
Connectors
Metal Upper Case/Base
- Working Current: 16A
- Working Voltage: 400/500V
- Rated Pulse Voltage: 6KV
- Pollution Level: 3
- Isolation Resistance: 10
- Material: Polycarbonate
- Operating Temperature Range: -40~+125
- Flame Retardant Grade (according to UL94): V0
- Conductor Section: 0.5-6mm²
- Installation Method: Hole Installation
Connectors
- Material: Copper
- Surface Treatment: Silver Plated
- <;1m ohm
- Wiring Form: Screw Connection
- Screw Tightening Torque/Test Torque: 0.25Nm+
- Wiring Forms: Screw Fixing
Metal Upper Case/Base
- Material: Cast Aluminum Alloy
- Surface Treatment: High Temperature Powder Coating
- Locking Device: Stainless Steel or Iron Galvanized
- Operating Temperature Range: -40~+125
- Protection Class: IP65
