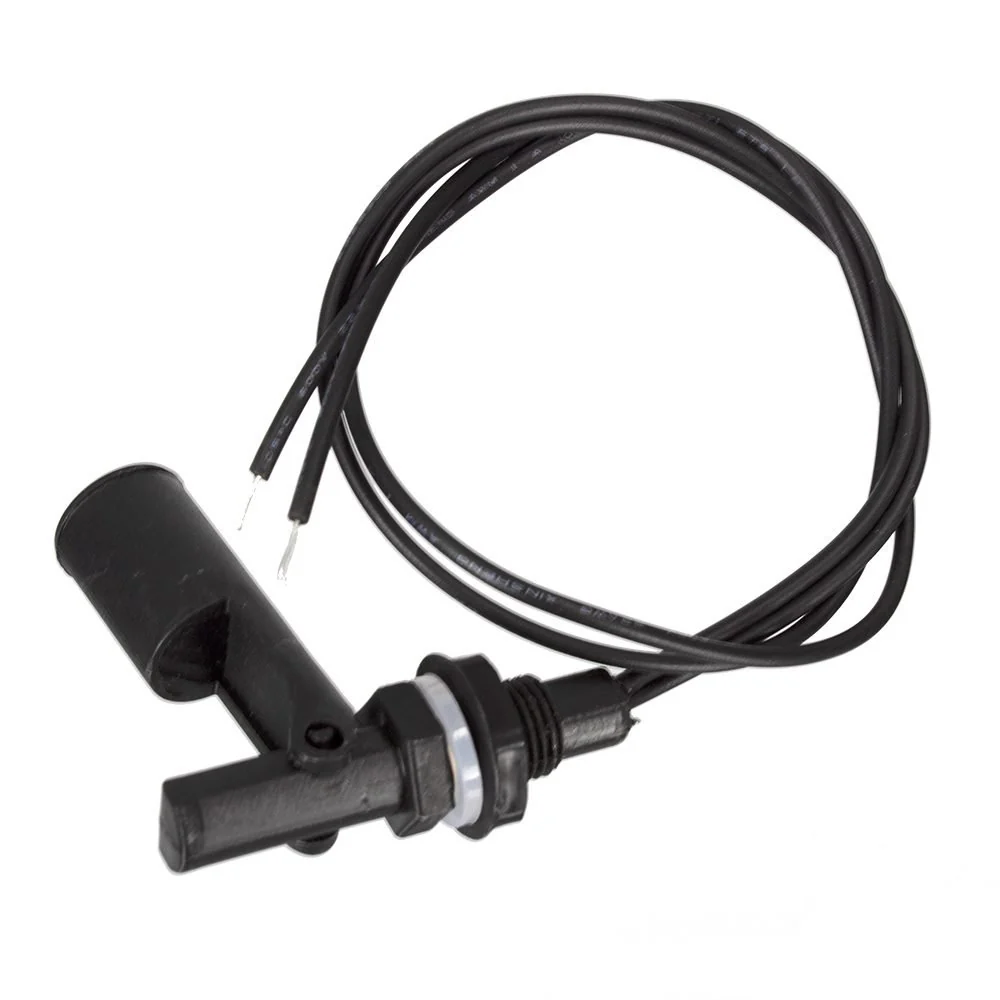

Float Switch Level Sensor: Side Mount

This compact float switch level sensor is a versatile and reliable device for monitoring liquid levels in a tank. Its simple, yet effective design allows it to activate pumps, alarms, heating elements, or other connected devices when the liquid reaches a specific level. The side-mount design and reversible functionality make it a flexible solution for a wide range of fluid control applications.

Key Features

• Normally Open or Normally Closed: The switch's state can be configured as either normally open or normally closed simply by rotating the device 180∘. This flexibility makes it adaptable to different control systems.

• Hermetically Sealed Relay: An internal magnet within the float activates a sealed reed relay, ensuring reliable, long-lasting performance without the risk of corrosion or contamination.

• Durable Construction: Made from Polypropylene (PP) material, the sensor is resistant to a wide range of chemicals and can operate in temperatures from −20∘C to +80∘C.

• Pre-wired for Easy Installation: The sensor is supplied with 300 mm flying output leads, simplifying the installation process.

• Compact Design: Its small size and M12 thread allow for discreet and secure horizontal mounting.

Technical Specifications

Specification	Details
Product Type	Float Switch Level Sensor
Mounting	Side Mount
Operating Principle	Magnetically Activated Reed Relay
Contact Rating (Max)	$10\text{W}$
Switching Voltage (Max)	$220\text{V DC}$
Switching Current (Max)	$1.5\text{A}$
Cutout Thread	M12
Material	Polypropylene (PP)
Color	Black
Leads	300 mm
Temperature Range	−20∘C to +80∘C
