22mm Latching Push Button Switch: 10A, Multiple Colours

For industrial panels, machinery, and automation systems, you need a switch that's not only robust but also provides clear status feedback. Our 22mm Latching Push Button Switch is engineered for durability and reliable performance, giving you confident control over your equipment.

Unlike momentary switches, this latching button stays in its state—either ON or OFF—after being pressed, providing a clear visual and physical indication of its status. With a high 10A current rating and a wide operating temperature range, it's built to withstand challenging environments. Available in a variety of colours with your choice of Normally Open (NO) or Normally Closed (NC) contacts, this switch is the perfect blend of functionality and versatility for your control applications.

Key Features & Benefits

• Secure Latching Action: The latching mechanism keeps the switch engaged until pressed again, providing a persistent ON/OFF state that's easy to see and feel.
• High Current Rating: A robust 10A current and heating rating allows the switch to handle a wide range of electrical loads without failure.
• Built for Durability: Constructed to operate reliably in temperatures from -25°C to 55°C, ensuring consistent performance in both hot and cold environments.
• Easy & Standard Installation: The 22mm mounting hole size is a universal standard, making it simple to install or replace in most control panels and equipment.

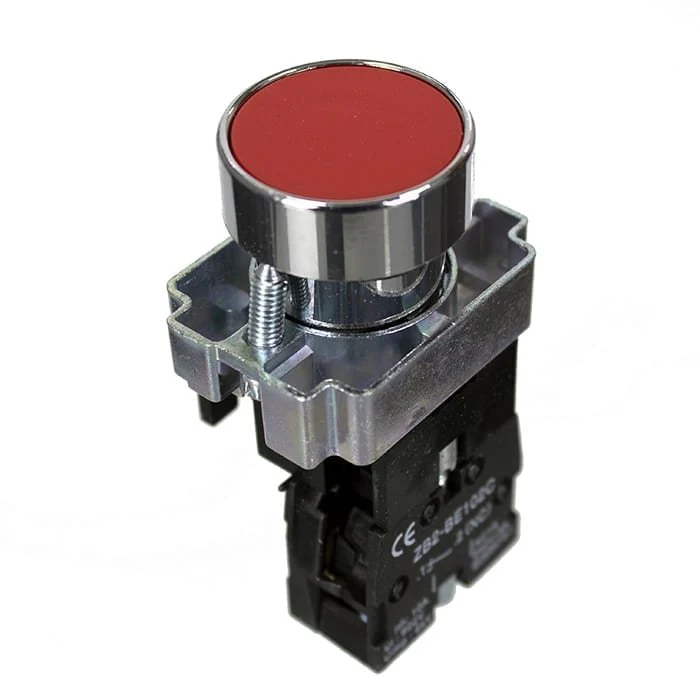

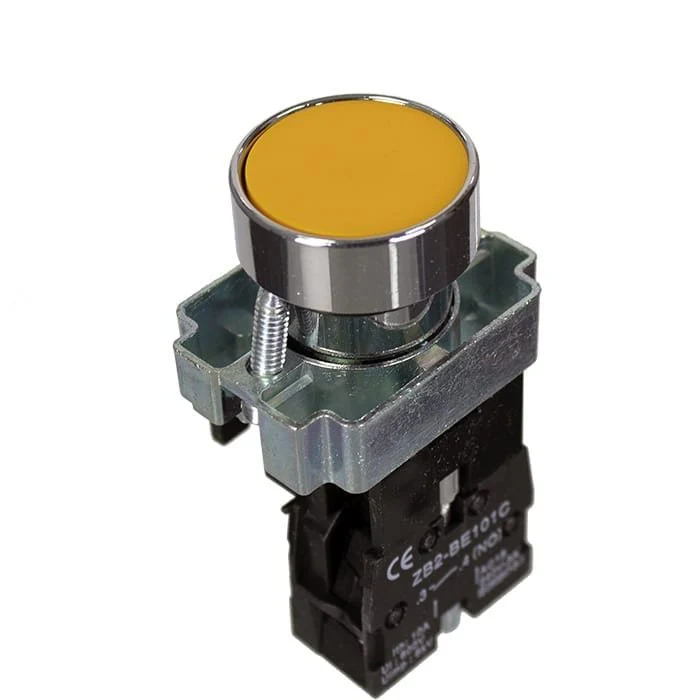

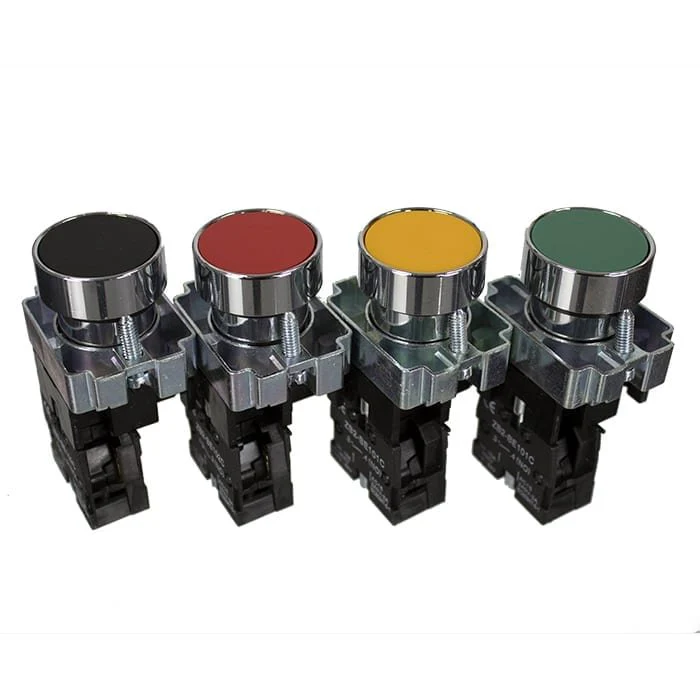

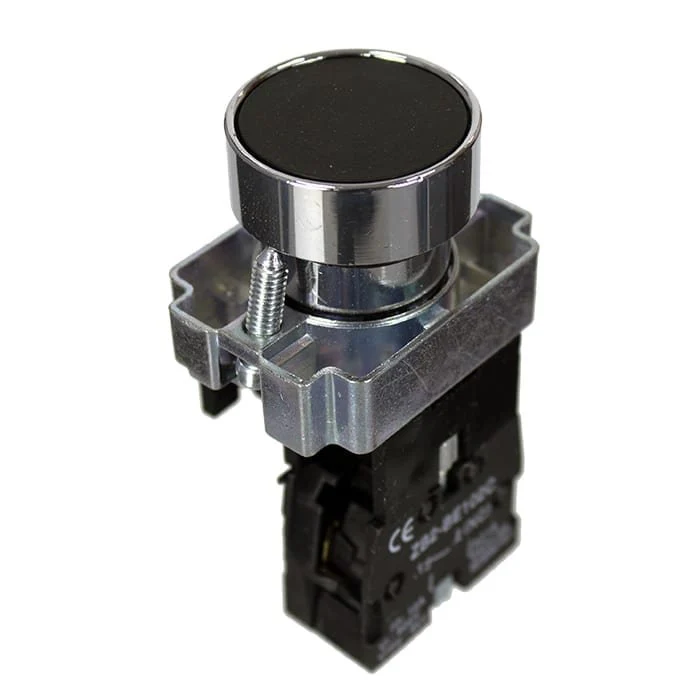

• Variety of Colours: Available in Red, Green, Amber, and Black, allowing for easy color-coding of functions and enhanced visual clarity on your control panel.
• Flexible Contact Options: Choose between Normally Open (NO) or Normally Closed (NC) contacts to perfectly suit the logic of your specific circuit.

Technical Specifications

Feature	Specification
Product Type	Latching Push Button Switch
Mounting Hole Size	22mm

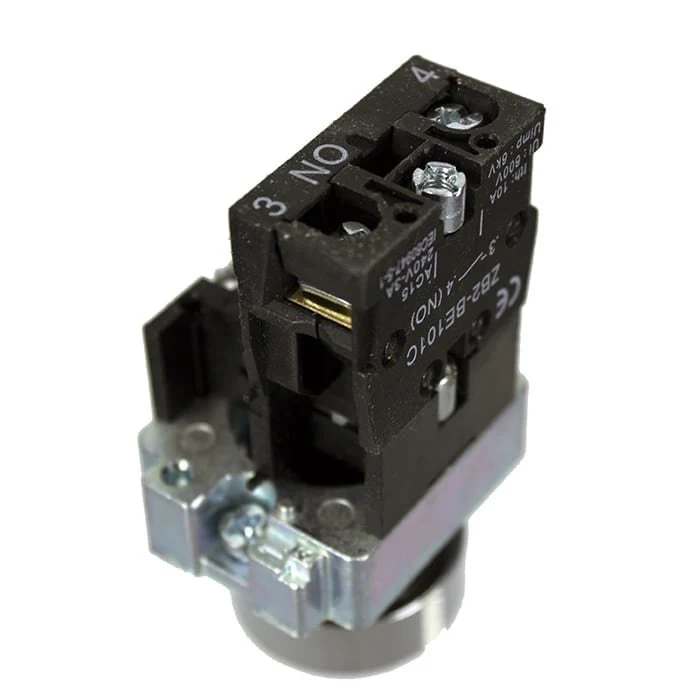

Switch Contacts	1NO (Normally Open) or 1NC (Normally Closed)
Working Current	10A
Rated Heating Current	10A
Max Voltage	380V AC
Operating Temperature	-25°C to 55°C
Available Colours	Red, Green, Amber, Black
Operation Mode	Latching (Self-Locking)



Understanding the Contacts: NO vs. NC

• Normally Open (NO): In its default, unpressed state, the circuit is open and no current flows. When the button is pressed and latched, the circuit closes and current flows. This is the most common configuration for starting a machine or turning a light ON.
• Normally Closed (NC): In its default, unpressed state, the circuit is closed and current is flowing. When the button is pressed and latched, the circuit opens and current stops flowing. This is typically used for a stop or emergency shutdown function.

Ideal Applications

• Industrial Control Panels
• Factory Machinery & Equipment
• Automation Systems
• Access Control & Security Systems
• Commercial & Residential Lighting Controls

Choose the right colour and contact type for your project. Add these 22mm Latching Push Button Switches to your cart today!
