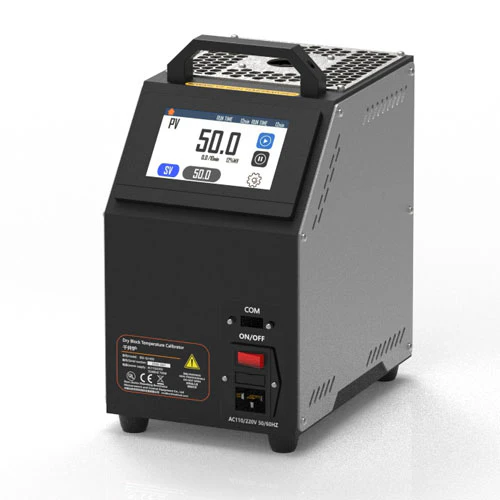

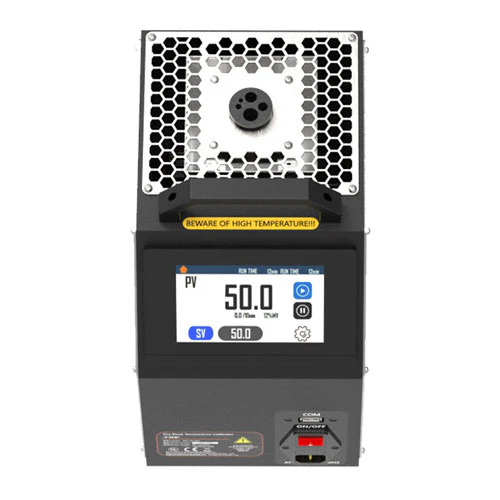

Portable Dry Block Calibrator（35℃~600℃) offers a consistent and precise temperature setting that is both stable and uniform, making them highly portable and convenient for on-site calibration. This rapid temperature stabilization and enhanced calibration speed address the challenges of transport and mobility, providing an efficient solution for calibrating a wide range of temperature-measuring instruments, including temperature sensors, standard thermometers, dilatation thermometers, thermocouples, and thermal resistors.

The calibrators are used widely in machinery, chemical industry, food, pharmaceuticals and other industries.
The new UCI-ST-AD-CAL eliminates the common problems of slow heat-up times and temperature inaccuracies. This is a common occurrence that can exist in other cheaper makes of dry block calibrators leading to an unnecessarily long calibration time.
The latest generation of our dry-block calibrators adopts the most advanced heating principle design globally. They have a fast heat-up time and constantly holds a stable temperature and rapid cooling. This all significantly improves the calibration efficiency. The accuracy is higher than other manufacturers through reliable high-precision temperature control and high-precision sensors.
The technology meets international standards; the touch screen operation is the first in the world that is also fast and straightforward to use.

Features

Accuracy ±0.3℃(customizable)
Display Stability ±0.1℃/10min
Small, lightweight, easy to carry.
Flight carry case included.
Standard insert and removing tweezer included.
Various insertion tubes are offered to test and calibrate multiple sensors of different sizes and quantities.
Customisable, according to the unique needs of users.
Excellent horizontal and vertical temperature field. Our deep Insertion lengths Lead the Industry.
4.3 inches colour LCD, full touch screen, intuitive and eye-catching. With the upper management software, the verification data can be easily read.
The unit offers fast cooling, accessible settings and good temperature stability control.
Replaceable dry insert block.
Protective functions such as short circuit, load circuit breaker, sensor protection, etc.

Specification

Parameter	Value
Temperature Range	35℃~600℃
Display Accuracy	±0.3℃ (customizable)
Display Stability	±0.1℃/10min
Working Condition	0℃~35℃, 20%~75%RH (No condensation)
Altitude	<2000m
Working Environment	22℃±3℃
Insert Depth	Insert depth 150mm
Insert Diameter	29.5mm
Hole Size	3mm~12mm (customizable)
Stable Time	15min
Resolution	0.01°
Display	LCD display, ℃ or ˚F
Dimensions	235mm * 170mm * 245mm
Weight	5kg
Power (100V~115V)	100V~115V (±10%) 50/60Hz, 575W
Power (200V~230V)	200V~230V (±10%) 50/60Hz, 575W
