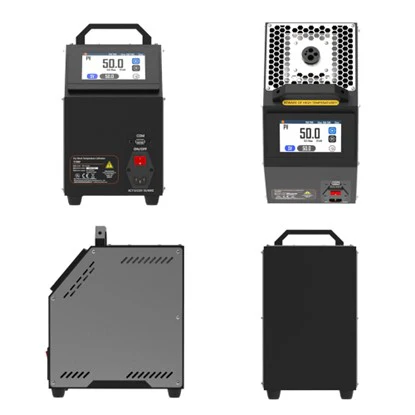

Portable Dry Block Calibrator（35℃~600℃）

Portable Dry Block Calibrator（35℃~600℃) offers a consistent and precise temperature setting that is both stable and uniform, making them highly portable and convenient for on-site calibration. This rapid temperature stabilization and enhanced calibration speed address the challenges of transport and mobility, providing an efficient solution for calibrating a wide range of temperature-measuring instruments, including temperature sensors, standard thermometers, dilatation thermometers, thermocouples, and thermal resistors.

• The calibrators are used widely in machinery, chemical industry, food, pharmaceuticals and other industries.
  The new UCI-ST-AD-CAL eliminates the common problems of slow heat-up times and temperature inaccuracies. This is a common occurrence that can exist in other cheaper makes of dry block calibrators leading to an unnecessarily long calibration time.
  The latest generation of our dry-block calibrators adopts the most advanced heating principle design globally. They have a fast heat-up time and constantly holds a stable temperature and rapid cooling. This all significantly improves the calibration efficiency. The accuracy is higher than other manufacturers through reliable high-precision temperature control and high-precision sensors.
  The technology meets international standards; the touch screen operation is the first in the world that is also fast and straightforward to use.

Features

• Accuracy ±0.3℃(customizable)
• Display Stability  ±0.1℃/10min
• Small, lightweight, easy to carry.

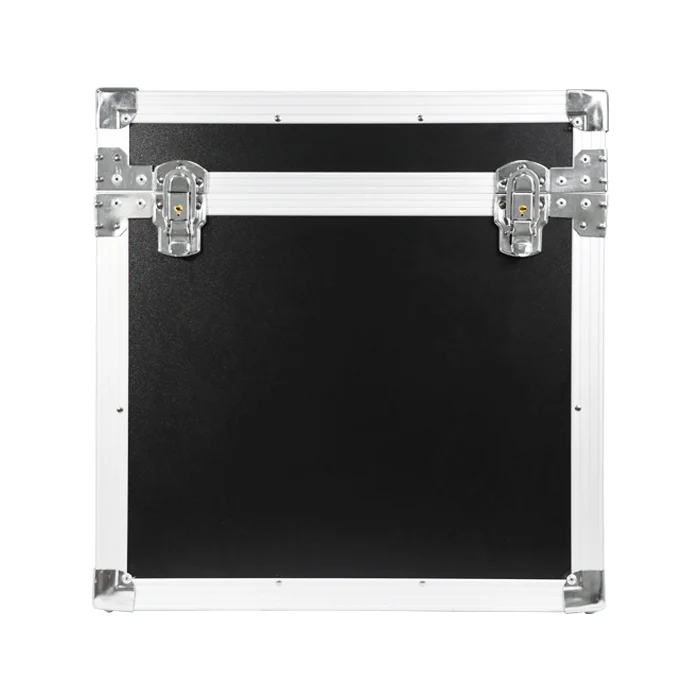

• Flight carry case included.
• Standard insert and removing tweezer included.
• Various insertion tubes are offered to test and calibrate multiple sensors of different sizes and quantities.
•  Customisable, according to the unique needs of users.
•  Excellent horizontal and vertical temperature field. Our deep Insertion lengths Lead the Industry.
•  4.3 inches colour LCD, full touch screen, intuitive and eye-catching. With the upper management software, the verification data can be easily read.
•  The unit offers fast cooling, accessible settings and good temperature stability control.
   Replaceable dry insert block.
• Protective functions such as short circuit, load circuit breaker, sensor protection, etc.

Specification

Parameter	Value
Temperature Range	35℃~600℃
Display Accuracy	±0.3℃ (customizable)
Display Stability	±0.1℃/10min
Working Condition	0℃~35℃, 20%~75%RH (No condensation)
Altitude	<2000m
Working Environment	22℃±3℃
Insert Depth	Insert depth 150mm
Insert Diameter	29.5mm
Hole Size	3mm~12mm (customizable)
Stable Time	15min
Resolution	0.01°
Display	LCD display, ℃ or ˚F
Dimensions	235mm * 170mm * 245mm
Weight	5kg
Power (100V~115V)	100V~115V (±10%) 50/60Hz, 575W
Power (200V~230V)	200V~230V (±10%) 50/60Hz, 575W
