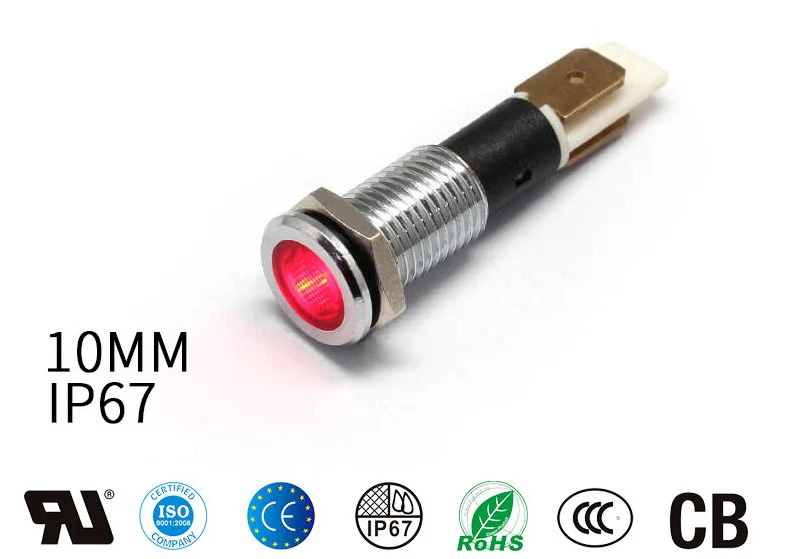

The 10NJ-5 panel indicator lamp is a compact, high-quality LED indicator designed for clear visual signalling in industrial control panels, electrical equipment, and machinery interfaces. Built with durable PA66 engineering plastics and a nickel-plated brass lamp shade, it delivers long service life, stable illumination, and reliable electrical performance.

Ideal for OEM manufacturers, repair applications, appliance control boards, and general industrial signalling.

Replacement for RS 589-698, 589-711, 589-705 and Bulgin C027500NBB, C027500NBD, C027500NBC and Valintine 6325 and 6326

Indicator Lamp Specification – 10NJ-5
Tail Configuration	Terminal
Terminal Specifications	6.3 mm wide, 0.8 mm thickness, 10 mm length
Dielectric Intensity	1500 VAC
Ambient Temperature	-15°C to +80°C
Panel Thickness	1–12 mm
Nut Torque	Max 44 N·m
Protection Level	IP50
Mounting Hole	10 mm
Unit Weight	5.2 g
Unit Accessories	Nut × 1 piece
Materials
Lamp Shade	PA66 & Nickel-plated Brass
Enclosure	Nylon PA66
Base	Nylon PA66
LED Parameters
LED Type	5 mm non-polarity LED
Rated Voltage available	2V / 3V / 6V / 12V / 24V / 48V / 110V / 220V / 380V
Rated Current	20 mA

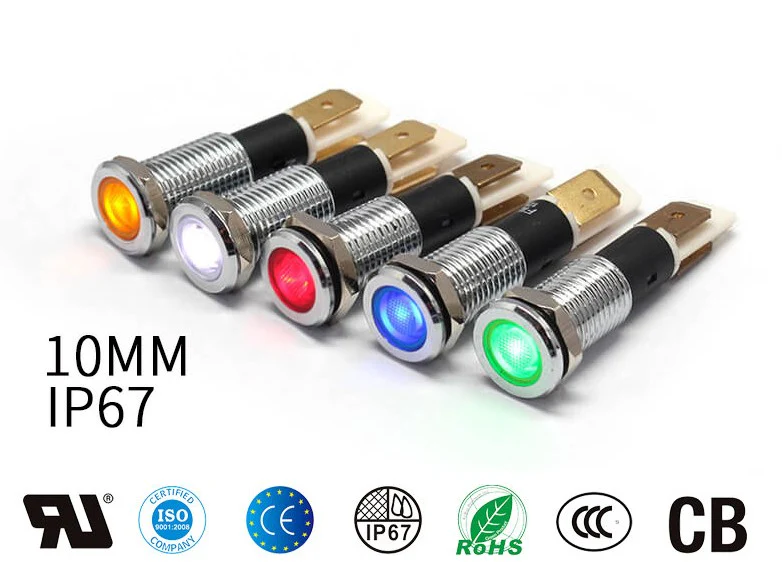

LED Colour Options	Red, Green, Blue, Yellow, White
LED Life	70,000 hours
Optical & Electrical Characteristics (at IF = 20 mA)
Luminous Intensity	Red: 1000–1500 mcd Green: 8000–10000 mcd Yellow: 1000–1500 mcd Blue: 2000–3000 mcd
Dominant Wavelength	Red: 620–625 nm Green: 520–525 nm Yellow: 588–592 nm Blue: 460–465 nm
50% Power Viewing Angle	Red: 35° Green: 60° Yellow: 35° Blue: 35°
Forward Voltage	Red: 1.8–2.2 V Green: 3.0–3.2 V Yellow: 2.0–2.2 V Blue: 3.0–3.2 V
Reverse Current (at VR = 5 V)	Red / Green / Yellow / Blue: Max 3 µA
Lens Colour	Same as LED colour
