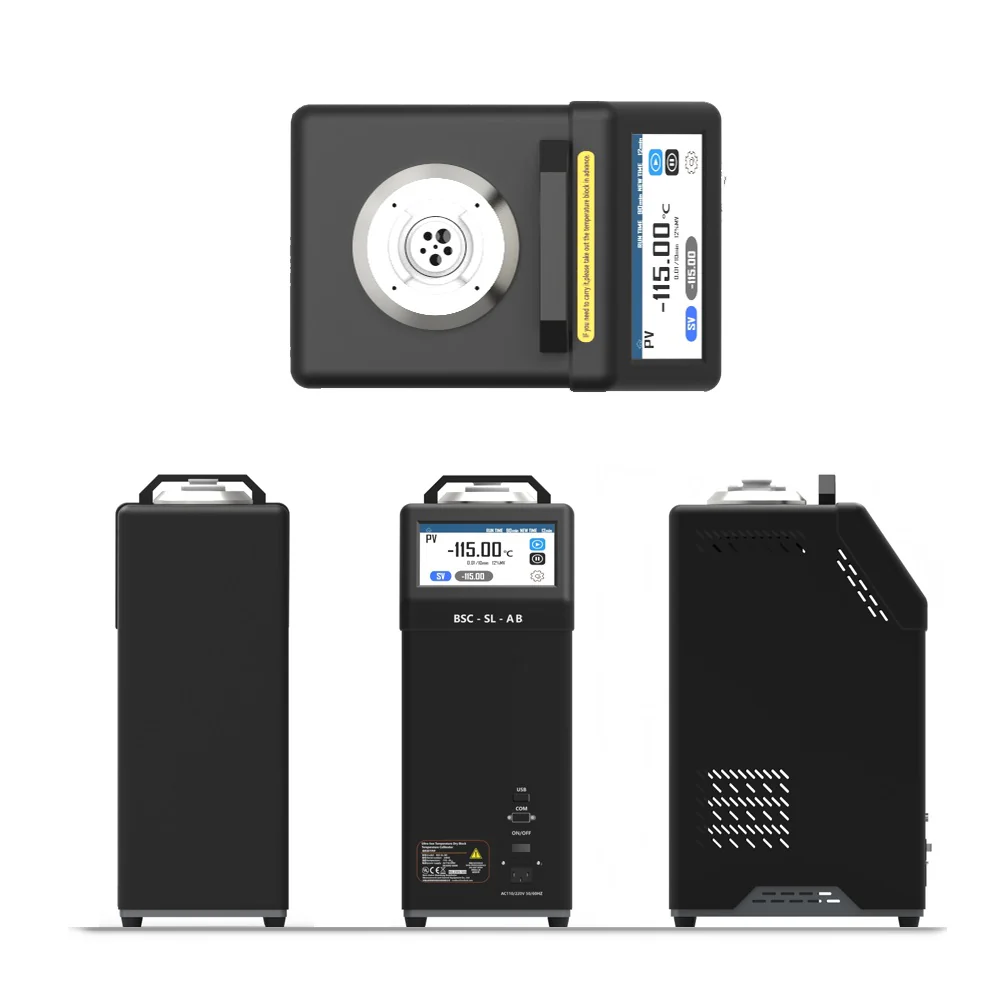

Ultra Low Temperature Dry Block/Wet Calibrator（-115℃~50℃)

The UCI-SL-AB-CAL Ultra Low Temperature Dry Block/Wet Calibrator (-115℃ to +50℃) provides precise, stable, and uniform temperature calibration for laboratory and on-site applications. Designed for portability and high efficiency, this calibrator allows rapid stabilisation and enhanced calibration speed, making it ideal for a wide range of temperature-measuring instruments, including temperature sensors, standard thermometers, dilatation thermometers, thermocouples, and thermal resistors.

The UCI-SL-AB-CAL solves common issues found in lower-end models, such as slow heat-up times and temperature inaccuracies, delivering faster calibration cycles and superior reliability. Its advanced heating principle ensures rapid heating, stable temperature holding, and quick cooling. Combined with high-precision sensors and touch screen operation, this model offers industry-leading calibration performance while meeting international standards.

Key Features

• Model: UCI-SL-AB-CAL

• Ultra-Low Temperature Range: -115℃ to +50℃ for specialized calibration tasks

• Dual Functionality: Dry block and wet calibration using liquid (e.g., anhydrous ethanol)

• High Accuracy & Stability: ±0.5℃ accuracy, ±0.05℃/10min full range stability

• Rapid Heat-Up & Cooling: Max temperature reached in ~10 minutes; minimum temperature in ~90 minutes

• Dual Input Channels: Simultaneous measurement of reference sensor and sensor under test

• Automatic Switch Test: Records ramping and switch points automatically

• Data Logging: USB interface for data transfer and calibration records

• Portable & Compact: Lightweight design for field and laboratory use

• Advanced Interface: Intuitive digital touch screen display

• Safety & Compliance: Over-temperature and short-circuit protection, CE and RoHS certified

Technical Specifications

Parameter	Value
Temperature Range	-115℃~+50℃
Display Accuracy	±0.5℃ Full range
Display Stability	±0.05℃/10min Full range
Working Condition	0℃~35℃, 30%~80%RH (No condensation)
Altitude	<2000m
Working Environment	23℃±2
Insert Depth	Insert depth 135mm
Total Depth	Total depth 180mm
Insert Diameter	29.8mm
Heating Time	-95℃~40℃: 40min
Cooling Time	23℃~-90℃: 40min
Cooling Time	23℃~-115℃: 90min
Stable Time	15min
Resolution	0.01°
Display	LCD display, ℃ or ˚F
Dimensions	495mm * 190mm * 280mm (19.5in * 7.5in * 11in)
Weight	16kg
Power (100V~115V)	100V~115V (±10%) 50/60Hz, 575W
Power (200V~230V)	200V~230V (±10%) 50/60Hz, 575W
Fuse (115V)	6.3A T 250V
Fuse (230V)	3.15A T 250V
Communication Interface	RS-232 / RS-485
Refrigerant	R704 (Helium) <20g, ASHRAE, Security Level A1



Applications

• On-site and laboratory calibration of temperature sensors, RTDs, thermocouples, and standard thermometers

• Dry block mode: Quick, clean calibration without liquids

• Wet calibration mode: For sensors requiring full immersion and enhanced thermal transfer

• Used in cryogenics, chemical, pharmaceutical, food, machinery, and industrial laboratories

• Ideal for portable, ultra-low temperature verification in demanding environments
