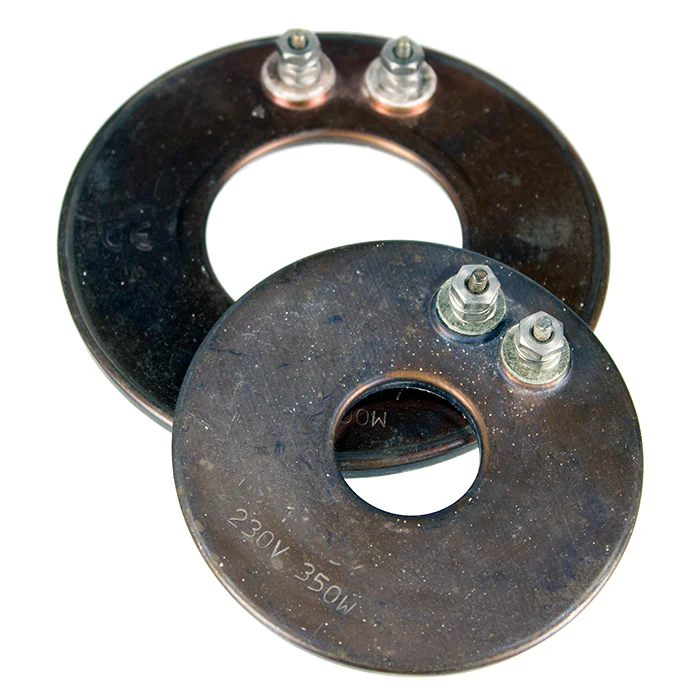

Ring Heaters (Full Sheath)

[vc_row][vc_column][vc_column_text woodmart_inline="no" text_larger="no"]

Application

Ring Heaters (Full Sheath) are used in many applications where other types of heaters such as strip heaters are not suitable. Ring Heaters can be fitted to heating platens, press dies, glue and wax melting machines, high-speed packing machines, kettles, coffee making machines and melting of soft metals. They have a maximum working temperature up to 650 deg C

Construction

Made from chrome steel sheath on one side and edges, with the other side bare refractory. The inside has a coiled electric resistant wire and the terminals are steel with locknuts and washers, heater thickness is 6.5mm.

Edit

Max wattage at 230v	Half sheath I/D	Full sheath I/D	Half sheath O/D	Full sheath O/D	Part No.
225	27mm	25mm	87mm	89mm	FS-1
350	27mm	25mm	87mm	89mm	FS-1
500	27mm	25mm	87mm	89mm	FS-1
400	50mm	48mm	100mm	102mm	FS-2
500	50mm	48mm	111mm	112mm	FS-3
1000	62mm	60mm	134mm	136mm	FS-4
1200	62mm	60mm	134mm	136mm	FS-4
1000	90mm	88mm	160mm	161mm	FS-6
1250	90mm	88mm	160mm	161mm	FS-6
1300	113mm	111mm	178mm	180mm	FS-7
1600	129mm	126mm	201mm	203mm	FS-8
1250	152mm	151mm	218mm	220mm	FS-9
1500	152mm	151mm	218mm	220mm	FS-9
1750	152mm	151mm	218mm	220mm	FS-9
2000	225mm	223mm	300mm	302mm	FS-10
