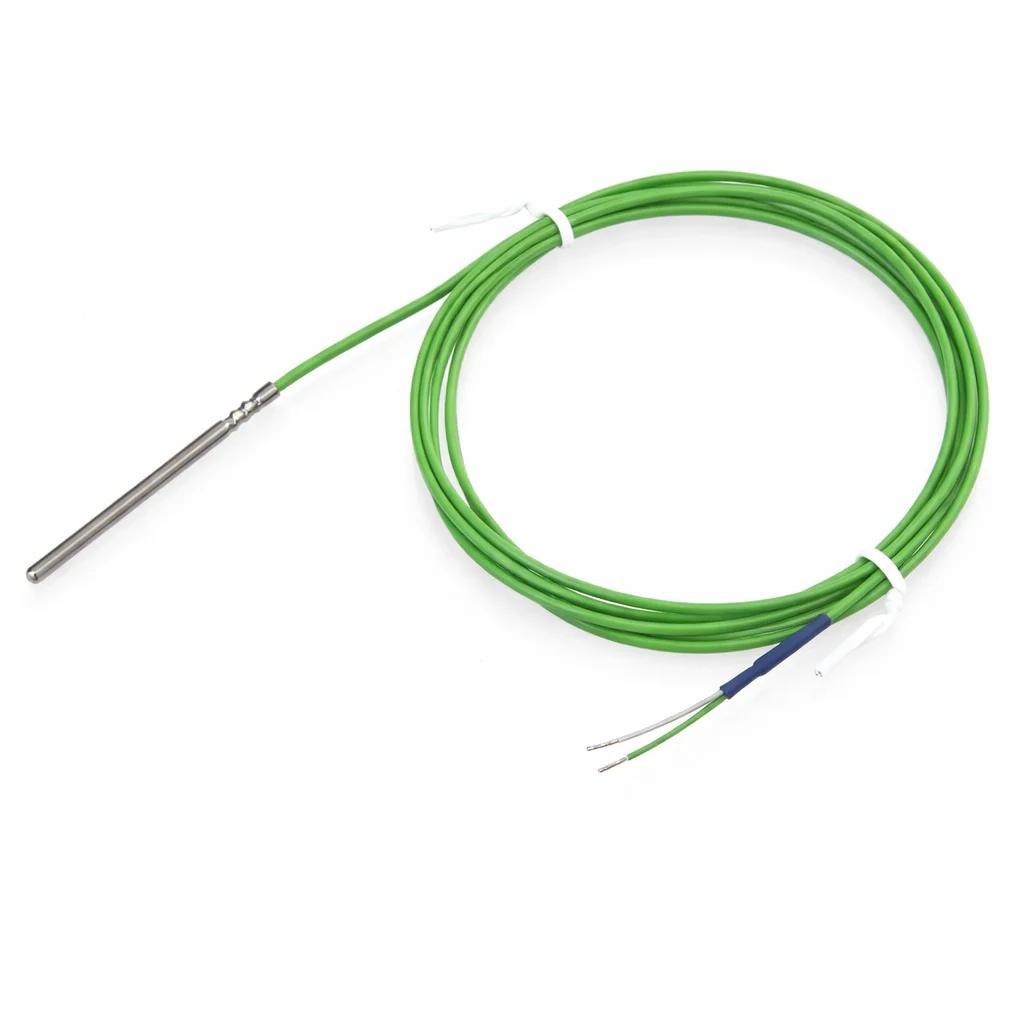

K-Type Thermocouple Temperature Sensor (K3-50 PTFE)

This high-accuracy Type K Thermocouple is designed for demanding industrial and laboratory environments. Featuring a rugged stainless steel probe and high-temperature PFA insulation, it offers excellent chemical resistance and thermal stability.

Technical Specifications

Feature	Specification
Sensor Type	Type K (Nickel-Chromium / Nickel-Alumel)
Probe Dimensions	6mm (Diameter) x 50mm (Length)
Probe Material	316 Stainless Steel
Lead Wire Length	1.5m (1500mm)
Insulation Material	PFA / PTFE (Teflon)
Color Coding	Green (+) / White (-) [IEC Standard]
Temperature Range	-75°C to +250°C
Termination	Bare tails / Stripped ends

Key Features

• Durable Construction: The 6mm diameter probe provides a robust shield for the thermocouple junction, suitable for immersion in liquids or air.

• Chemical Resistance: The PFA-insulated leads are waterproof, oil-resistant, and can withstand harsh chemical exposure without degrading.

• Standard Compliance: Uses the green/white colour coding for easy identification and compatibility with standard K-type instrumentation.

• Fast Response: Optimised design ensures rapid thermal transfer for real-time temperature monitoring.

Applications

• Industrial Processing: Monitoring ovens, kilns, and machinery.

• Laboratory Testing: Chemical baths and cryogenic applications.

• HVAC Systems: Air duct and fluid temperature measurement.

• Food & Beverage: Suitable for environments requiring high hygiene and corrosion resistance.
