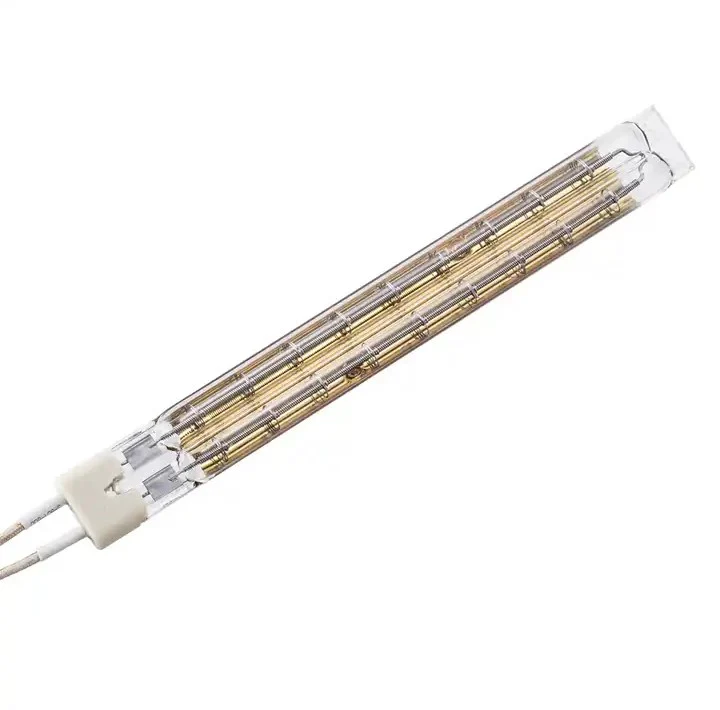

Heraeus 9751765 Infrared Twin Tube Lamp 4200W, 230V

Specification

Wattage: 4200W

Voltage: 400V

Heating Length: 1800mm

Overall Length: 1920mm

Lead Length: 500mm

Wavelength: Medium Wave

Tube Size: 23 x 11mm

Lamp Details

Quick Heating: Achieves fast response time within 1-2 seconds.

Special Reflectors:

• Gold Reflector: 90% reflective rate.
• White Ceramic Reflector: 70% reflective rate.

Matched IR Radiation Wavelengths:

• Short Wave: 1.0-1.4μm.
• Fast Response Medium Wave: 1.4-2.0μm.
• Carbon Medium Wave: 2.0-2.5μm.
• Medium Wave: 2.2-3.2μm.

Higher Density Power Output:

• Short Wave Lamp: Highest surface power output of 200KW/M².
• Fast Response Medium Wave Lamp: 130KW/M².
• Medium Wave Lamp: 60KW/M².

Long Working Life:

• Short Wave and Fast Response Medium Wave Lamps: Guaranteed working life of 5000 hours.
• Medium Wave Lamps: Guaranteed working life of 8000 hours.
