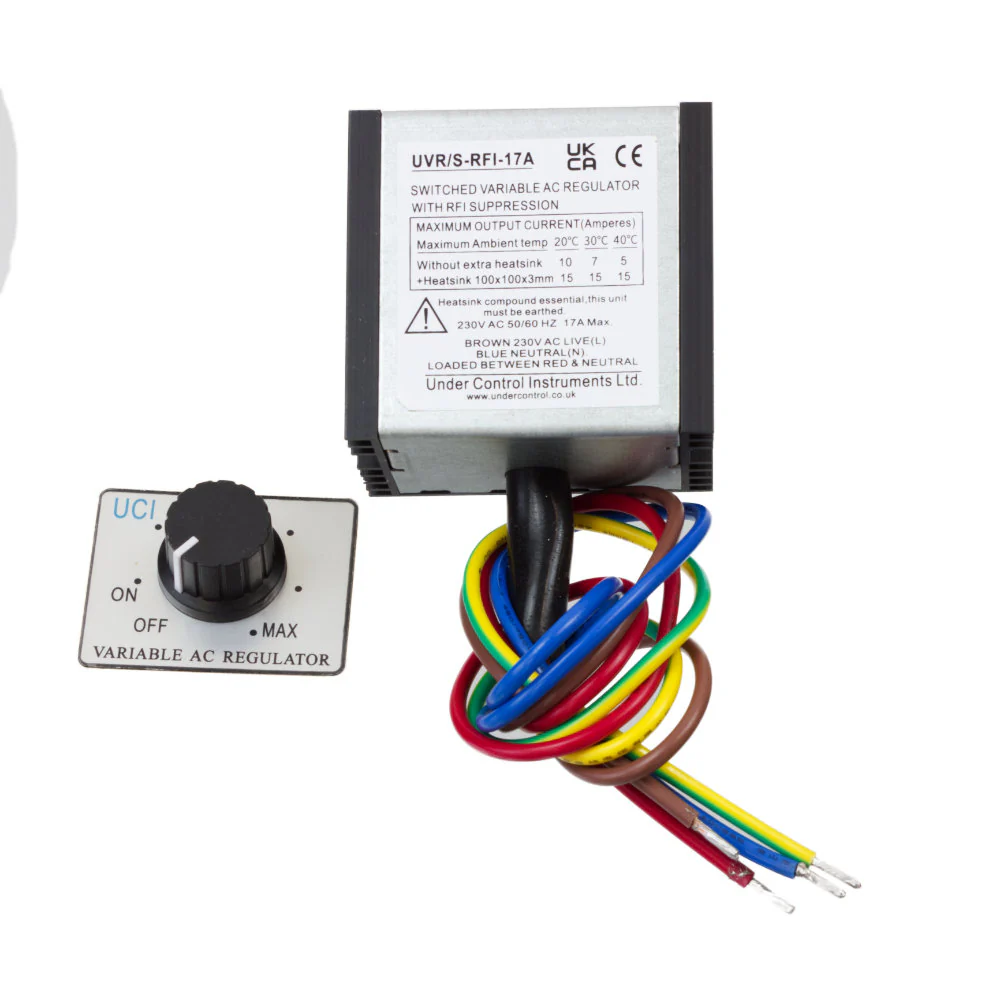

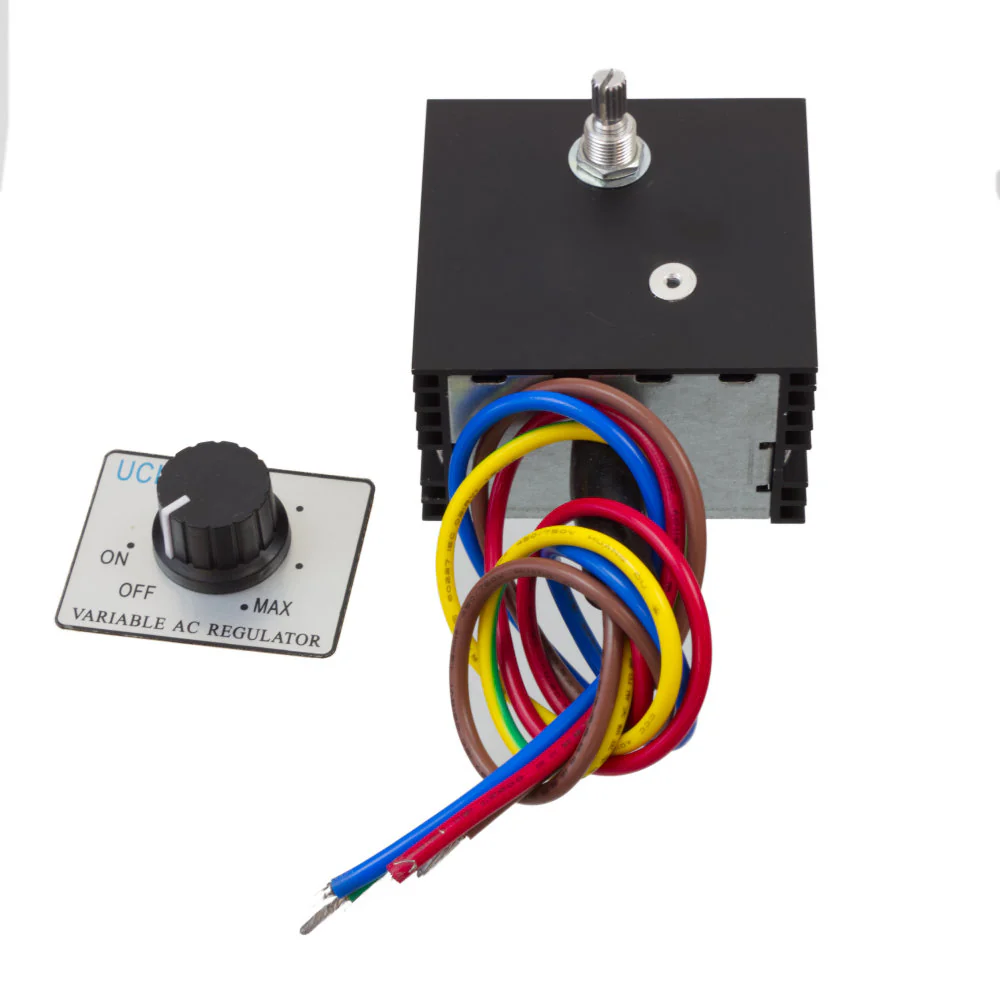

Dimming Control Switch with RFI – UVR/S AC Power Regulator 17A

Description

The UVR/S AC Power Regulator with RFI Suppression (17A) is designed for precise phase angle control in single-phase 230V systems. Offering smooth adjustment from 0–98%, this dimming control switch optimises power flow, protects against high inrush currents, and ensures maximum efficiency across a wide range of applications.

With built-in RFI suppression, the regulator minimises interference in sensitive environments, while the robust TRIAC design provides reliable protection against sudden current and voltage surges. Ideal for both commercial and industrial use, this unit offers durability, versatility, and straightforward integration into control panels.

Key Features

• Replacement/Alternative: QVR/S-RFI

• Control Range: Infinite adjustment, 0–98% output

• Power Switching: Integrated ON/OFF functionality

• Load Capacity: Up to 17A at 230V single-phase

• High Inrush Current Handling: Rugged TRIAC component for surge protection

• RFI Suppression: Reduces electromagnetic interference for cleaner performance

• Panel Integration: Supplied with adhesive silver labels and precision hairline knobs for a professional finish

Technical Specifications

• Voltage: 230V AC, single-phase

• Maximum Current: 17A

• Adjustment Range: 0–98%

• Mounting: Easy front-panel installation via single hole with locknut

• Surge Protection: Built-in TRIAC handles high inrush loads

• Construction: Robust, compact module with integrated suppression components

Applications

The UVR/S AC Power Regulator with RFI suppression is suited for a wide range of industries and equipment, including:

• Hospitality & Catering: Heat lamps, quartz lamps, and food warming stations

• Heating Systems: Infrared, resistive, and tubular heating elements

• Industrial Machinery: Plastic moulding machines, dryers, and tooling equipment

• Electrical Components: Transformers, motors, and inductive loads
