Bakery PID ON-OFF Oven controller, 0-400 deg C

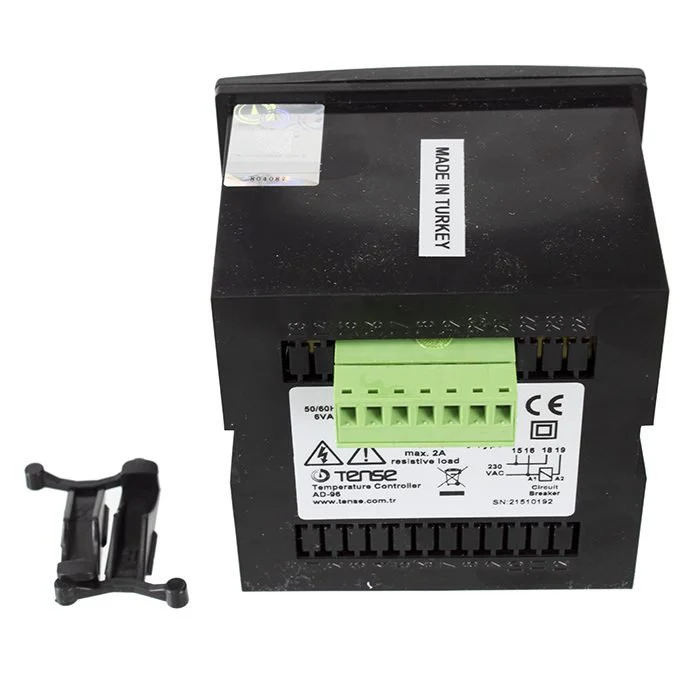

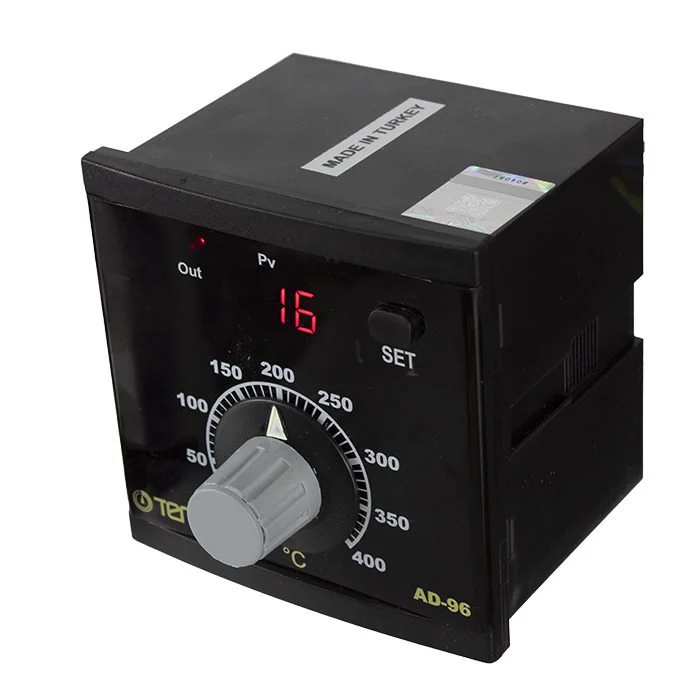

Bakery PID ON-OFF Oven controller, 0-400 deg C, dial display, J thermocouple input, 2A relay output. 92x92 mm cutouts are great for applications that require quick settings and easily read displays. The cut-out size is 92x92 mm 1/4 DIN. The input is a thermocouple, and the output is via an internal 2A relay, power supply 230v.

Features

• Microprocessor-Based, PID Temperature Controller
• Auto-tuning for PID Parameters
• Sensor Type: T/C, Fe-Const, J Type
• ON-OFF Control Form
• Displays SET or PROCESS Values
• Cold-junction Compensation for T/C
• Excellent Linearity with °C/mV and °C/W Look-up Tables
• EEPROM Memory to Store Settings
• Easy Connection with Plug-in Connectors

Applications

• Bakery applications,

• fermantation cabinets,

• cement and glass oven, grain drier cabinet,

• industrial fryer,

• incubators.
